3D Laser Scanning to BIM, Cadet Barracks
West Point, New York
MJ has extensive experience converting 3D laser scan point clouds into BIM models to support the planning and design of future projects. MJ has completed 3D laser scanning of several historic buildings at West Point including the Cadet Chapel, the Bradley Barracks, the Lee Barracks and the Sherman Barracks.

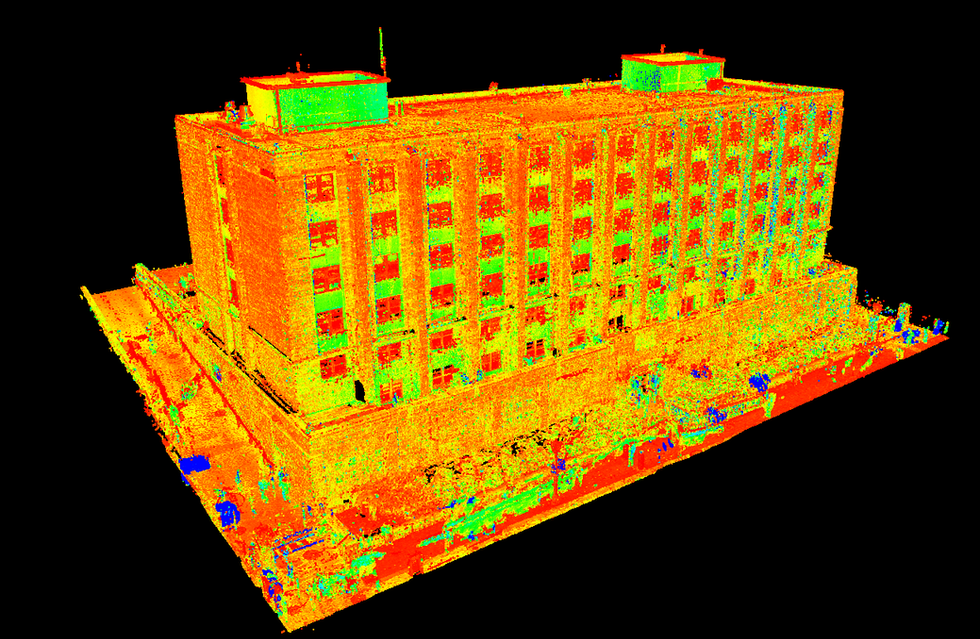

MJ was responsible for interior and exterior 3D laser scanning of Sherman, Lee, and Bradley Barracks. Laser scans were performed at 100’ intervals on the exterior and roof to capture individual building geometry. MJ created BIM models (Revit) from the point cloud data, detailing windows, doors, walls, roof, and roof-level equipment.
MJ provided our client with a user-friendly weblink (URL) to a 3D, web-based viewer for direct interaction with the scan data and corresponding photos.
